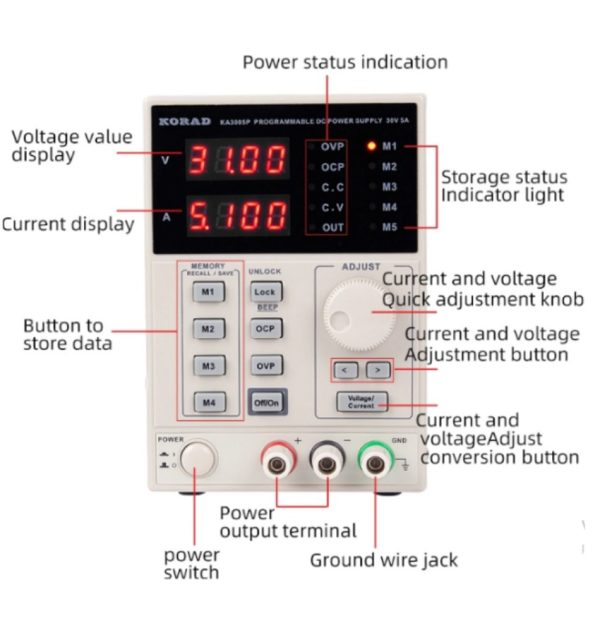

KORAD PROGRAMMABLE DC Power Supply KA3005D (30V ~ 5A)

Featuring a compact and user-friendly design, the KA-3005D offers precise and stable output with low ripple and noise. It employs advanced switching technology, ensuring high efficiency and excellent power regulation. The dual LED display provides clear visibility of both voltage and current values simultaneously.

The power supply is equipped with various protection features to safeguard both the power supply and the connected devices. These include over voltage protection (O V  P), over current protection (O C P), and over temperature protection (O T P). These safeguards ensure the safety of the equipment and prevent damage in case of any faults or malfunctions.

The KA-3005D also offers versatile operating modes such as constant voltage (CV) and constant current (CC), allowing users to select the appropriate mode for their specific applications. The adjustable output and precise control make it suitable for laboratory use, electronic production lines, and educational purposes.

With its robust construction and reliable performance, the Korad KA-3005D 30V-5AMP DC power supply is a valuable tool for engineers, hobbyists, and technicians working with electronic circuits, testing devices, and other applications requiring a stable and adjustable power source.

Features :

1. 30V/5A full digital power control single
2. 10mV/1mA high accuracy and resolution
3. Low noise and ripple
4. CV/CC given voltage and constant current mode
5. Highly reliable O C P, O V P, arbitrarily set protection
6. Built-in set of parameters stored
7. Outputs a switch control
8. Power and memory function
9. Keypad lock to prevent misuse
10. Intelligent temperature control fan, effectively reduce the noise
11. Easy alternative to traditional digital power

• * Precisely generate the required voltages and currents.
• * 0-30V adjustable DC output high-precision.
• * 10mV and 1mA resolution.
• * Professional power supply design with intuitive operability.
• * Simple and intuitive operation, fast and accurate selection of voltage and current can be realized.
• * To prevent damage to the load
• * Can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can
• * The key guard lock panel buttons prevent undesirable results in the key test engineering
• * 5 user-programmable preset settings
• * Just press the button to recall and save area a key to bring up the user to store the data and save user settings

Stable Voltage :

* Output Voltage Range: 0-30V Continuously adjustable
* Setup Resolution: 10 mV
* Setup Accuracy: <0.05% +20 mV
* Ripple: < 1mVRMS
* Read back Accuracy: 10 mV
* Temp. Coefficient : < 0.1% + 10mV
* Read back, Temp. Coefficient : < 100 ppm+10 mV

Stable Current :

* Output Current Range: 0-5A Continuously adjustable
* Setup Resolution: 1 mA
* Setup Accuracy: <0.1% +3 mA
* Ripple: < 3mARMS
* Read back Accuracy: 1 mA
* Temp. Coefficient : < 0.1% + 5mA
* Read back, Temp. Coefficient : < 100 ppm+5 mA

Packing Details:

• * 1xKorad KA-3005D 30V-5AMP DC Power Supply
