KORAD U203 30V 10A POWER SUPPLY
Sale!15%

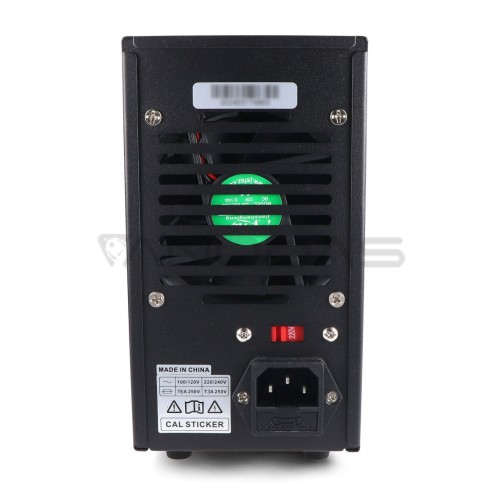

Laboratory power supply Korad U203 is a device that offers stable power supply for electronic devices with a voltage range from 0V to 30V and a current intensity from 0A to 10A. Precise adjustment of parameters is done using built-in knobs, and in addition, the power unit also has two 24W USB ports for fast charging of devices.
Features:
- Smoothly adjusts voltage from 0V to 30V and current from 0A to 10A
- Enables coarse voltage regulation in 1V steps and fine regulation in the range of 0.01V to 0.1V
- Displays the current value with an accuracy of 0.1 m A
- It has two 24W USB ports for fast charging of devices
- There is a built-in LED display that shows the current voltage, current and power values
- It is equipped with protection against overload and overheating
- When the device is turned off, it can remember the set parameter values
- It has on/off and O C P output switches
Specifications:
- Voltage range: from 0V to 30V
- Current range: from 0V to 10A
- Parameter adjustment
- Voltage: ≤0.01% + 2mV
- Current: ≤0.1% + 5 mA
- Parameter setting accuracy:
- – Voltage: 10 mV
- – Current: 1 mA
- Setting accuracy:
- – Voltage: ≤0.5% + 10 mV
- – Current: ≤0.5% + 5 mA
- Output voltage ripple:
- – Voltage: ≤20mVrms
- – Intensity: ≤10 mArms
- Dimensions: 231x95x168mm
- Weight: 2.5 kg
Original price was: ₹5,999.00.₹5,100.00Current price is: ₹5,100.00.
Out of stock
