MECHANIC MOS 300 STEREO TRINOCULAR MICROSCOPE

Features:

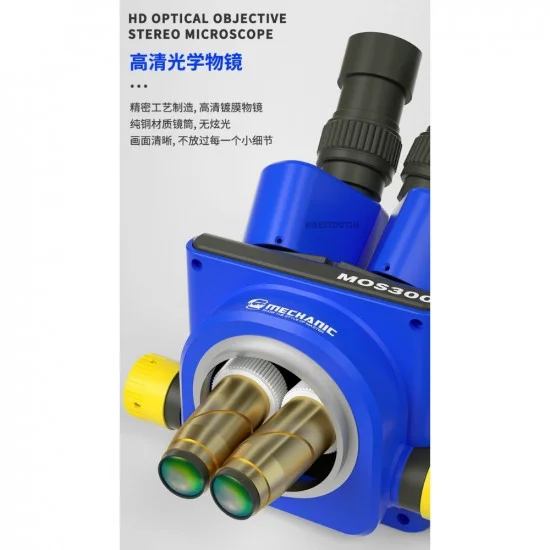

• The high-definition optical objective lens, precision process manufacturing, high-definition coated objective lens
• Pure copper material lens barrel, no glare, clear picture, do not miss every small detail
• WF1OX/22 eyepiece, binocular diopter can be adjusted ±5DP, making binocular observation easier
• With the high field of view wide-angle eyepiece, standard WF10X/22MM, it is still convenient to wear glasses for observation
• 0.6-4.5X continuous zoom, optical system, large magnification continuous zoom, sharp imaging, and no distortion, very high definition, can correctly focus on samples with large uneven surfaces, so as to obtain a three-dimensional image.
• The focusing gear rack is made of metal material, which is durable and accurate with the magnification, making the image clearer
• CTV2/5 adapter, clearer image than ordinary TV interface, wider field of view, no vignetting
• True trinocular high-definition display, matched with 4K high-definition camera display, eye-clearing observation is synchronized with the screen display content, high-definition large screen without smear (only the package includes the high-definition camera, the bare metal does not include the high-definition camera)

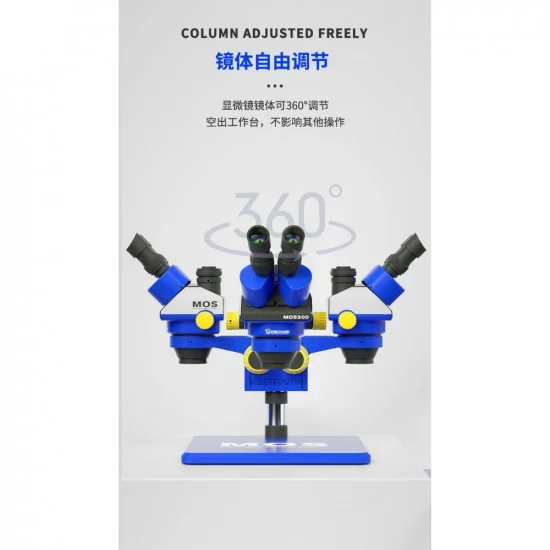

• The mirror body can be adjusted freely, and the microscope body can be adjusted 360°, freeing up the workbench and not affecting other operations

Specification: MOS300-B11:

• Observation head: 45decline, 360rotate, pupil distance 54—76mm; bilateral visual adjustment ±5
• Adjustable eyepiece: Standard: WF10X22, high angle wide-angle eyepiece provides convenience for observers wearing glasses
• Optional eyepiece: WF10x22mm, WF15x15mm, WF20x10mm, WF25x9mm, WF30x8mm
• Objective: 0.6X—4.5X Zoom Range,objective magnification ratio 1:10,
• Auxiliary Lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X For option
• Magnification:  Standard:6X–45X, optional and auxiliary lenses can be extended to 1.8X—90X ontinuous doubling
• Working Distance: 100mm
• Focus arm: 76mm Diameter, 32mm pole size
• Plate: Black/White plate
• Base: B11 column type large plate base, another base can be selected
• Outward Size: 200mm(W)*273mm(D)*280mm(H)
• illumination: Optional LED Illumination, see LED light source series diagram for details

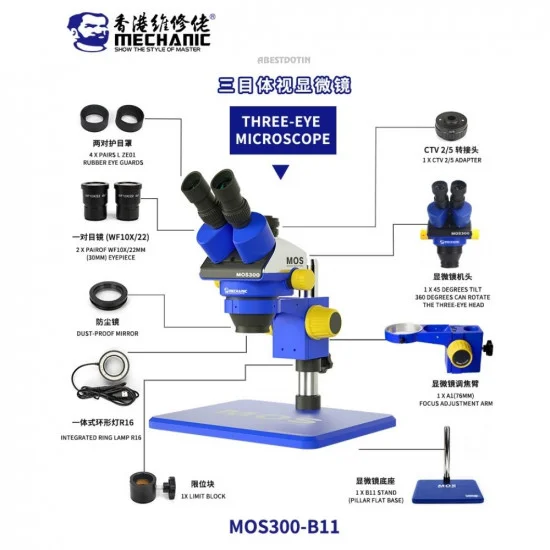

Package includes:

• 1 x Trinocular microscope
• 1 x Microscope Base
• 1 x All-in-one LED ring light
• 2 x WF10X/22 eyepiece
• 2  x Goggle
• 1 x Dust mirror
• 1 x Limit block
• 1 x CTV 2/5 Adapters(only MOS300)
