A PCB holder for mobile phone repair is an important tool for technicians who work with smartphone motherboards, PCBs, ICs, and other small electronic components. During motherboard repair, keeping the PCB stable is essential because even a small movement can affect soldering, component placement, or inspection.
Mobile phone motherboards contain tiny components and closely arranged circuits. Technicians may need to solder, desolder, clean, inspect, or replace components during the repair process. A reliable PCB holder provides a stable platform and helps keep the board securely positioned while these operations are performed.
Mtools offers different types of mobile repair tools and motherboard fixtures designed for professional repair work. Its product range includes PCB holders, motherboard repair fixtures, soldering stations, microscopes, multimeters, and other tools used for electronics repair.
What Is a PCB Holder?

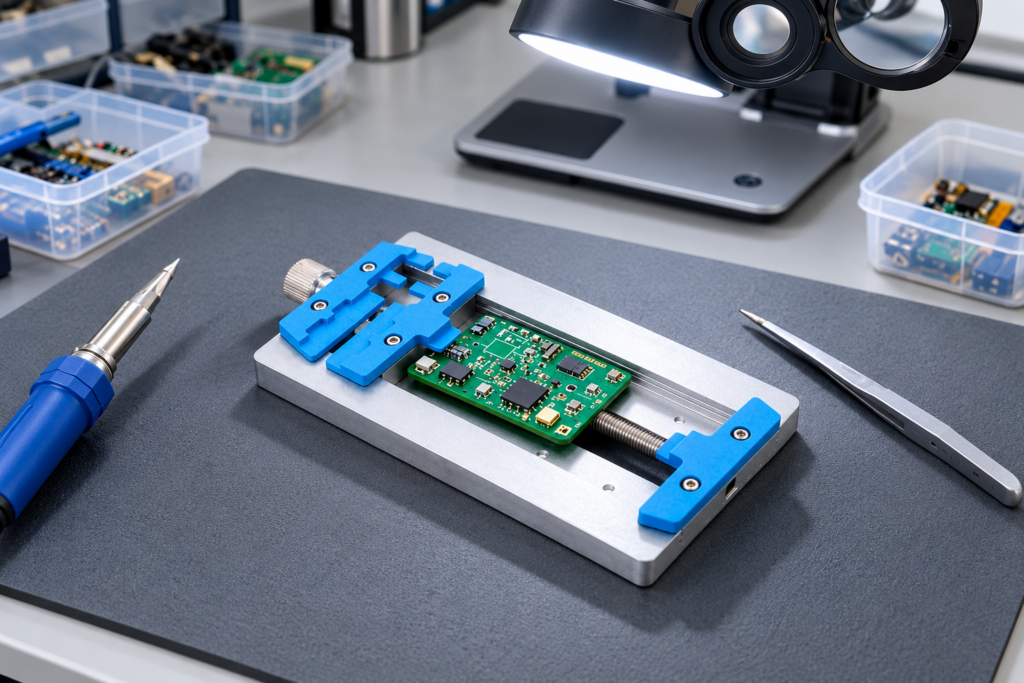

A PCB holder is a fixture designed to hold a printed circuit board securely during repair, soldering, inspection, and other maintenance work.
In mobile phone repair, the motherboard is often small and difficult to handle directly. Holding it with your fingers while working can make the repair process uncomfortable and may increase the risk of damaging components.
A PCB holder provides support and allows the technician to position the board properly. Some holders are adjustable, allowing technicians to work with different motherboard sizes and shapes.
For example, Mtools lists products such as the MECHANIC MR6 PCB Holder, which is designed as a motherboard fixture for mobile phone maintenance.
Why Is a PCB Holder Important for Mobile Phone Repair?
1. Keeps the motherboard stable
One of the main advantages of a PCB holder is stability. A motherboard needs to remain in a fixed position while soldering or desoldering components.
Movement during repair can make it difficult to place solder accurately. A stable holder helps technicians maintain better control over their work.
2. Improves soldering precision
Mobile phone PCB repair often involves working with very small solder joints and components. A stable board makes it easier to use a soldering iron, hot air station, tweezers, or other precision tools.
When the motherboard remains securely positioned, technicians can concentrate on the repair instead of constantly adjusting the board.
3. Makes motherboard inspection easier
Inspection is an important part of mobile phone repair. Technicians may need to examine tracks, solder joints, ICs, connectors, and other components under a microscope.
A PCB holder can keep the motherboard in a fixed position while the technician inspects the board. This is particularly useful when working with a microscope.
Mtools also offers different microscopes designed for mobile phone and motherboard repair, making a stable PCB fixture useful as part of a complete repair workstation.
4. Helps during IC and component replacement
Replacing an IC or other motherboard component requires careful positioning. The board should not move while heat is applied or when components are manipulated.
A suitable PCB holder can provide the support needed during component replacement and other motherboard-level repair operations.
5. Reduces handling of the PCB
Repeatedly holding a motherboard by hand can make the repair process more difficult. Using a fixture allows technicians to handle the board more efficiently and maintain a consistent working position.
Common Applications of a PCB Holder
A PCB holder for mobile phone repair can be useful for several tasks, including:
- Motherboard inspection
- IC replacement
- Soldering and desoldering
- SMD component replacement
- PCB cleaning
- Jumper wire repair
- Connector repair
- BGA-related repair work
- Motherboard testing
- Component identification
The exact application depends on the type of holder and the repair being performed.
How to Choose the Right PCB Holder for Mobile Phone Repair
Not every PCB holder is suitable for every repair job. Consider the following factors before choosing one.
Adjustable Design
An adjustable holder can accommodate different motherboard sizes and shapes. This can be particularly useful for technicians who repair multiple smartphone brands and models.
Strong Grip
The holder should keep the PCB firmly in place without unnecessarily stressing the board. A secure grip is important when performing precision repair.
Heat Resistance
If the holder will be used during soldering or hot-air work, heat-resistant construction is an important consideration.
Some mobile motherboard fixtures available through Mtools are specifically designed around soldering and repair applications.
Easy Position Adjustment
A good fixture should allow the technician to position the motherboard comfortably. Easy adjustment can improve workflow when moving between different repair tasks.
Build Quality
Repair tools are used repeatedly, so durability matters. A sturdy PCB holder can be a useful long-term addition to a mobile repair workstation.
PCB Holder vs Holding a Motherboard by Hand
Working without a PCB holder may seem convenient for simple tasks, but it becomes difficult when performing detailed motherboard repair.
When holding a PCB manually, the technician has to use one hand to stabilize the board while using another hand for the repair tool. This can reduce control during precision work.
A PCB holder keeps the motherboard secured, allowing both hands to be used more effectively for repair tasks.
For professional technicians, combining a PCB holder with a microscope, soldering station, multimeter, hot air rework station, and appropriate hand tools can create a more efficient repair setup.
Mtools’ product categories include soldering stations and irons, SMD rework stations, multimeters, microscopes, tweezers, flux and paste, and other mobile repair equipment.
PCB Holder and Mobile Motherboard Repair
Motherboard repair requires precision because modern smartphones contain densely packed electronic components. A technician may need to locate a damaged component, check connections, remove an IC, repair a track, or install a replacement component.
During these operations, the motherboard should remain stable.
A PCB holder does not replace the technician’s skills or other repair equipment, but it can make the physical handling of the motherboard easier and more controlled.
For example, a technician may use a PCB holder together with a microscope to inspect the board and then use a soldering station or hot air rework station to complete the repair.
Mtools currently lists various soldering and rework equipment suitable for mobile phone motherboard work, including hot-air rework stations and temperature-controlled soldering stations.
Essential Tools to Use Alongside a PCB Holder
A PCB holder works best as part of a complete mobile repair setup. Depending on the repair level, technicians may also need:
Soldering Station
A temperature-controlled soldering station helps with precision soldering and component replacement. Mtools lists several soldering stations designed for electronics and mobile phone repair.
Hot Air Rework Station
Hot air equipment can be used for appropriate SMD and motherboard repair tasks. Mtools has a dedicated SMD rework station category with multiple models and configurations.
Microscope
A microscope helps technicians inspect small components, solder joints, PCB tracks, and other motherboard details.
Multimeter
A multimeter can help technicians perform electrical measurements and troubleshoot circuits.
Tweezers
Precision tweezers are useful for handling small components during motherboard repair.
Flux and Soldering Materials
Suitable soldering materials help technicians perform controlled soldering and component replacement.
Tips for Using a PCB Holder
Follow these basic practices when using a PCB holder:
- Clean the motherboard before placing it in the fixture.
- Position the PCB correctly before tightening the holder.
- Avoid applying excessive pressure to the motherboard.
- Make sure the board is firmly secured before soldering.
- Keep the work area clean and organized.
- Use suitable tools for the specific repair task.
- Check that the fixture is stable before applying heat.
- Handle sensitive electronic components carefully.
Final Thoughts
A PCB holder for mobile phone repair can make motherboard repair more organized, stable, and convenient. It helps technicians keep the PCB in position while performing tasks such as inspection, soldering, component replacement, and motherboard maintenance.
For technicians building or upgrading a mobile repair workstation, a PCB holder can be combined with other essential equipment such as a microscope, soldering station, hot air rework station, multimeter, tweezers, and motherboard repair fixtures.
Mtools provides a wide range of mobile repair tools and equipment, including PCB holders, motherboard fixtures, soldering equipment, microscopes, SMD rework stations, and other accessories for electronics repair.
Choosing the right fixture depends on the type of mobile phone repair you perform, the motherboard sizes you commonly handle, and the other equipment in your workstation. A suitable PCB holder can be a practical addition to any professional mobile phone repair setup.
